Manifolds

As an authorized Parker Hannifin distributer, we offer their full range of manifolds including complete customization to meet your specifications. Some of the customizations we offer are proportional controls, custom cylinder mounts, and manifolds for integrated systems.

Manifolds

Manifolds consist of flow channels that aim to simplify flow paths, reduce and remove fittings and hoses, minimizes space and reduce potential leak points, and diagnostics are simple.

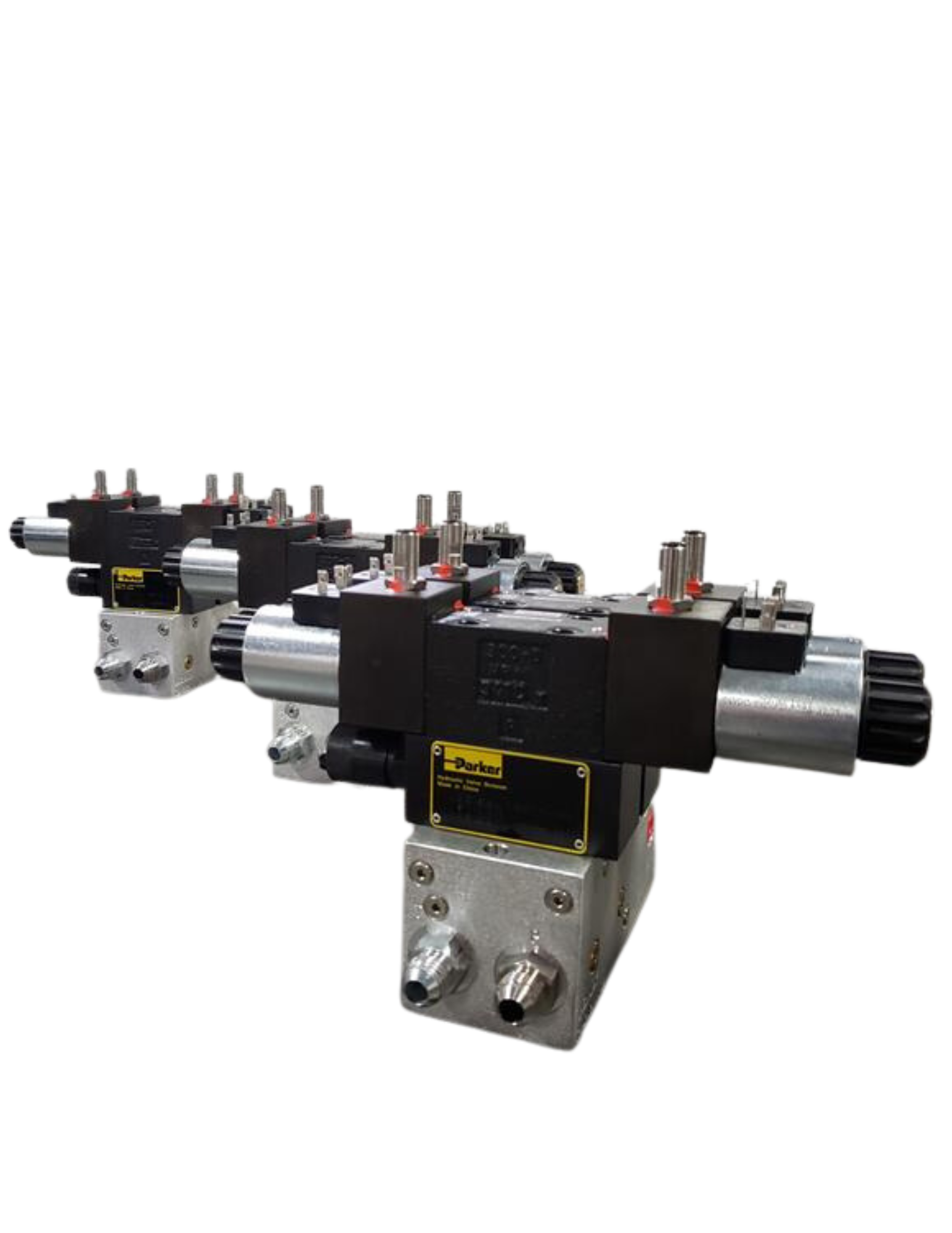

Sandwich Manifold

Sandwich manifolds are modular stackable manifolds that utilize ISO and NFPAstandard port patterns


Key Considerations:

  • Off the shelf parts
  • No machining required
  • Easy to swap out and change valves
  • Limited customization and flow path options

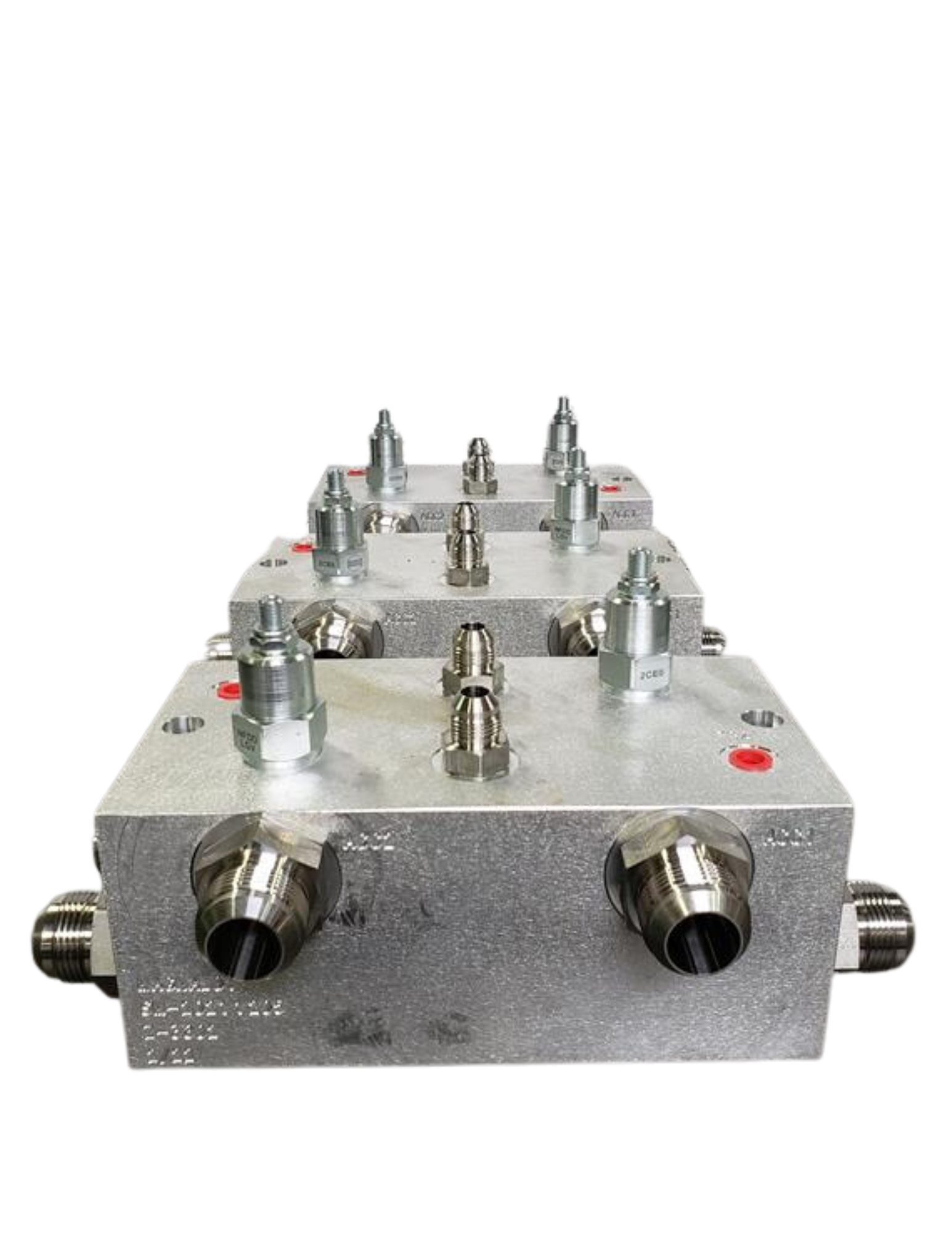

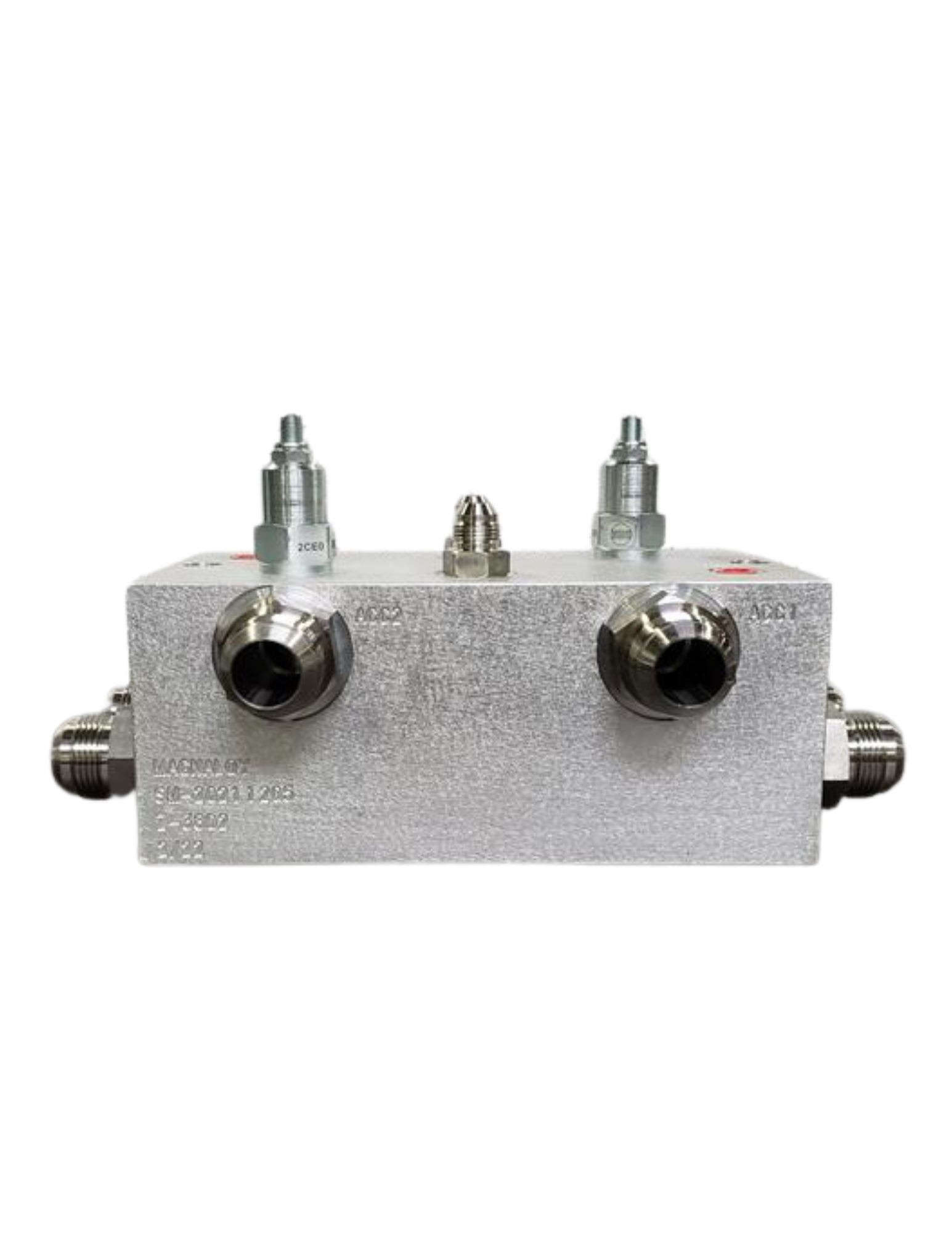

Custom Manifolds

Custom manifolds can have several flow channels and valve cavities for specialized functions. Custom manifolds excel in complex integrated system due to ease of use and installation.


Key Considerations:

  • Fully designed to your system requirements
  • Allows for use of specialized valves
  • Tightest form factor: can be designed to fit specific dimensional criteria
  • Custom machined
  • Reducing Leak Points
  • Clean Up Plumbing
  • Variety of Materials and Port Types
  • Pressures of 10K+ PSI

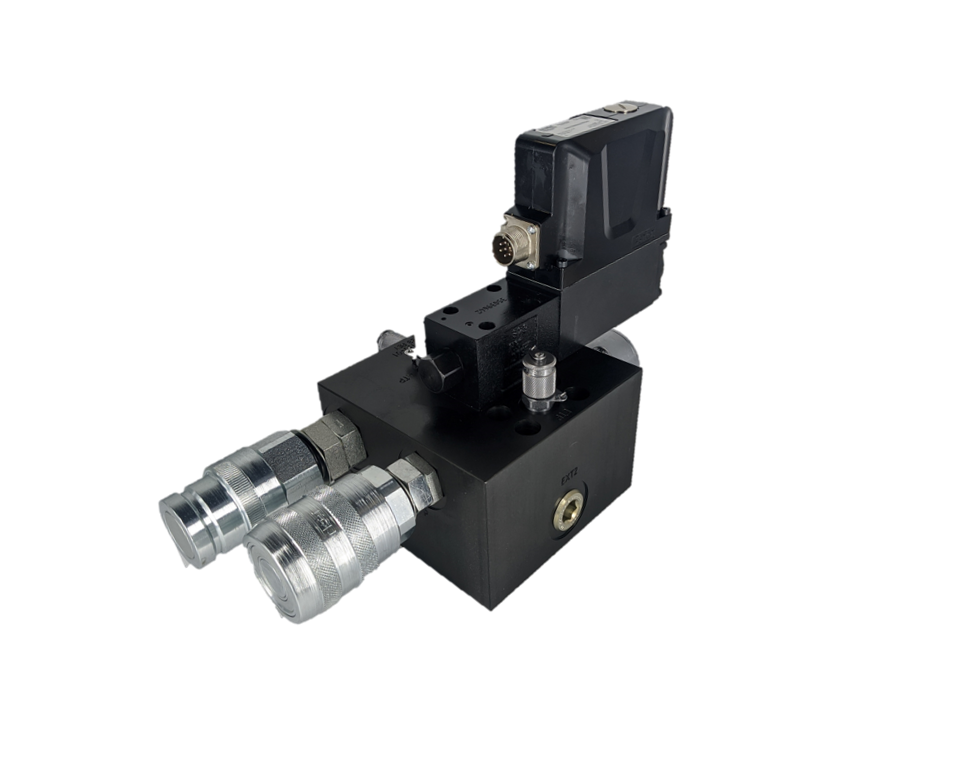

Abort Manifolds

Abort Manifolds perform abort functions in case of system failures. Commonly used in test applications where test failure cannot harm product


Key Specification:

  • Safely aborts per user specification
  • built in redundancies

Integrated Systems

Flow Divider Systems

Electro-Hydraulic Control

Aerospace Solutions

Electro-Hydraulic Proportional Control

Electro-hydraulic actuators have become a leading technology compared to their pure hydraulic and pneumatic counterparts due to their many advantages. Electro-hydraulic actuation offers a higher degree of precision in movement with their electronic sensors and allows for easier adjustment as controllers can remotely operate the unit. They are more compact as they require fewer components, making it power-dense and ideal for aerospace applications with low load requirements. Its self-contained unit mitigates safety hazards and does not require regular servicing. These benefits come with the same performance, handling loads, and shock tolerances as traditional hydraulic technology. Download our abort manifold flyer.

Manifold Solutions

Modular Manifold

  • 5000 PSI
  • Limited Valves
  • Simple Build
  • Pressure Volume
  • Vertical Space

Learn More

Custom Manifold

  • 5000+ PSI
  • Many Valves
  • Made to fit different solutions
  • Redundant with custom for solutions

Learn More
