Proportional Valves

Parker’s proportional valves are made for precision and endurance and are well suited for a wide variety of applications especially where accuracy and efficiency are a must. Across the complete performance range of dynamics, our proportional valves enable precise directional or flow control that react to minute changes in the fluid, perfect for industrial and mobile hydraulic purposes. Our process control valves are versatile for various applications requiring the control of steam, gas, liquids or chemicals. In all cases, our customers benefit from reliable operation even under harsh conditions.

Download Product Overview

What can we help you find?

Vane Pumps and Motors

Fully Integrated Position

Feedback System

Compact

Very Good Repeatability

Quick Crossover Reference

Parker Eaton Rexroth Atos Nachi Continental Hytos
D1FP AxisPro 4WRA / 4WRE DLHZO / DHZO SS-G01, SF-G01, SL-G01 VED03MX PRL
D3FP AxisPro 4WRA / 4WRE DLHZO / DHZO SS-G03, SF-G03, SL-G03 VED05MX PRM6
D1FB KDG4V / KC3 4WRA / 4WRE DLHZO / DHZO SS-G01, SF-G01, SL-G01 VED03M PRM2
D3FB KDG4V / KC3 4WRA / 4WRE DLHZO / DHZO SS-G03, SF-G03, SL-G03 VED05M PRM2
D1FC KDG4V / KC3 4WRA / 4WRE DLHZO / DHZO SS-G01, SF-G01, SL-G01 VED03 PRM7
D3FC KDG4V / KC3 4WRA / 4WRE DLHZO / DHZO SS-G03, SF-G03, SL-G03 VED05 PRM7
More Information Here

Parker Proportional Valves

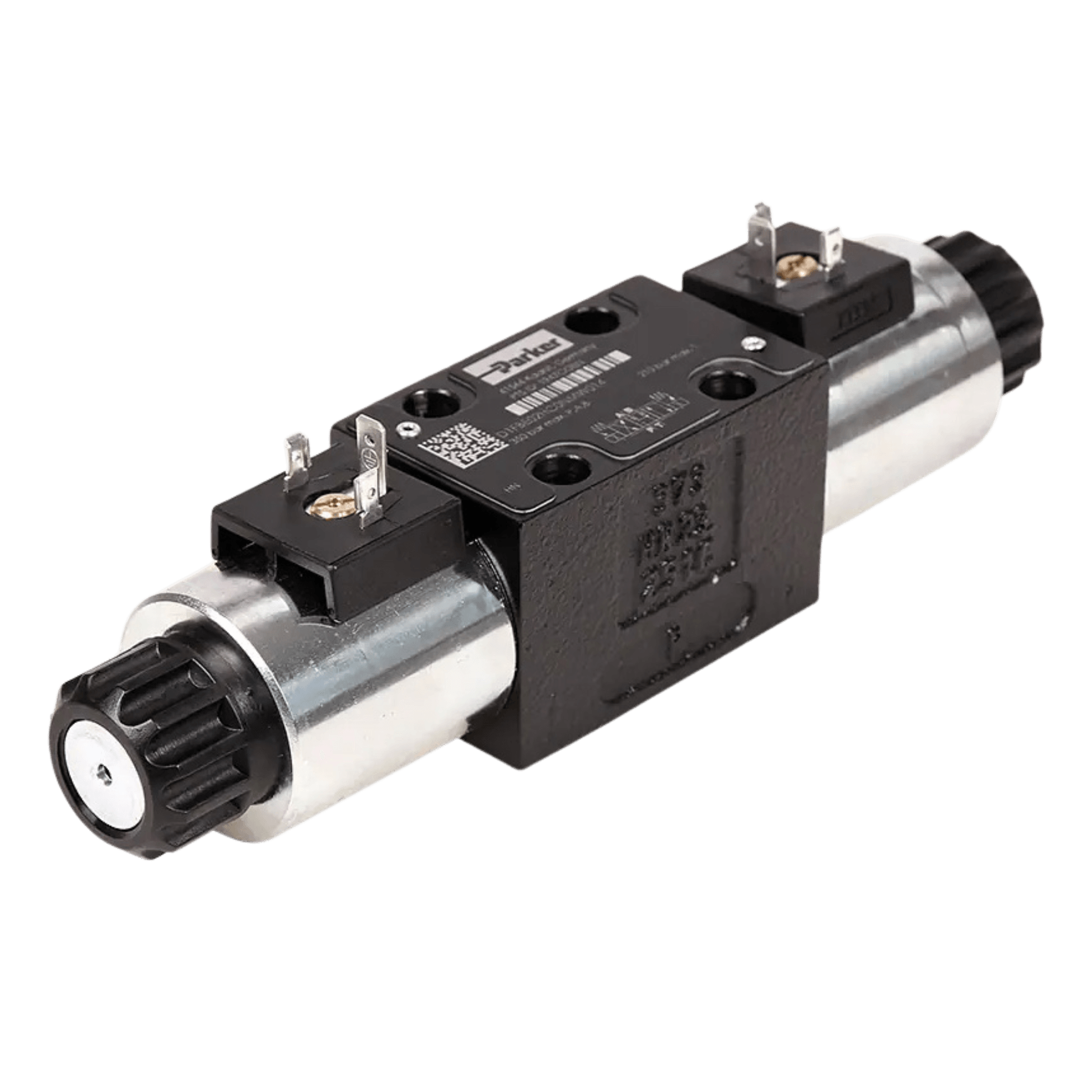

D1FB/D3FB

  • Spool/ sleeve and spool/ body design provides versatile applications for maximum precision or high nominal flow
  • Manual Override allows to actuate the valve without current
  • Low hysteresis ensures high repreatability and thus improved process and product accuracy
  • High level of dynamics and flows for optimized process speed
  • Optional coil to permit ambient temperature up to 60 degreed Celsius
  • Optimized Process Speeds

Temperature: -25C to 60C

Function: 2 & 3-way

Actuation: Proportional Solenoid

Spool Design: Spool/ Body

Max. Operating Pressure: 350 bar

Pressure Differential: 5 bar

Seal: NBR, FPM

Body Material: Cast Iron

Learn More

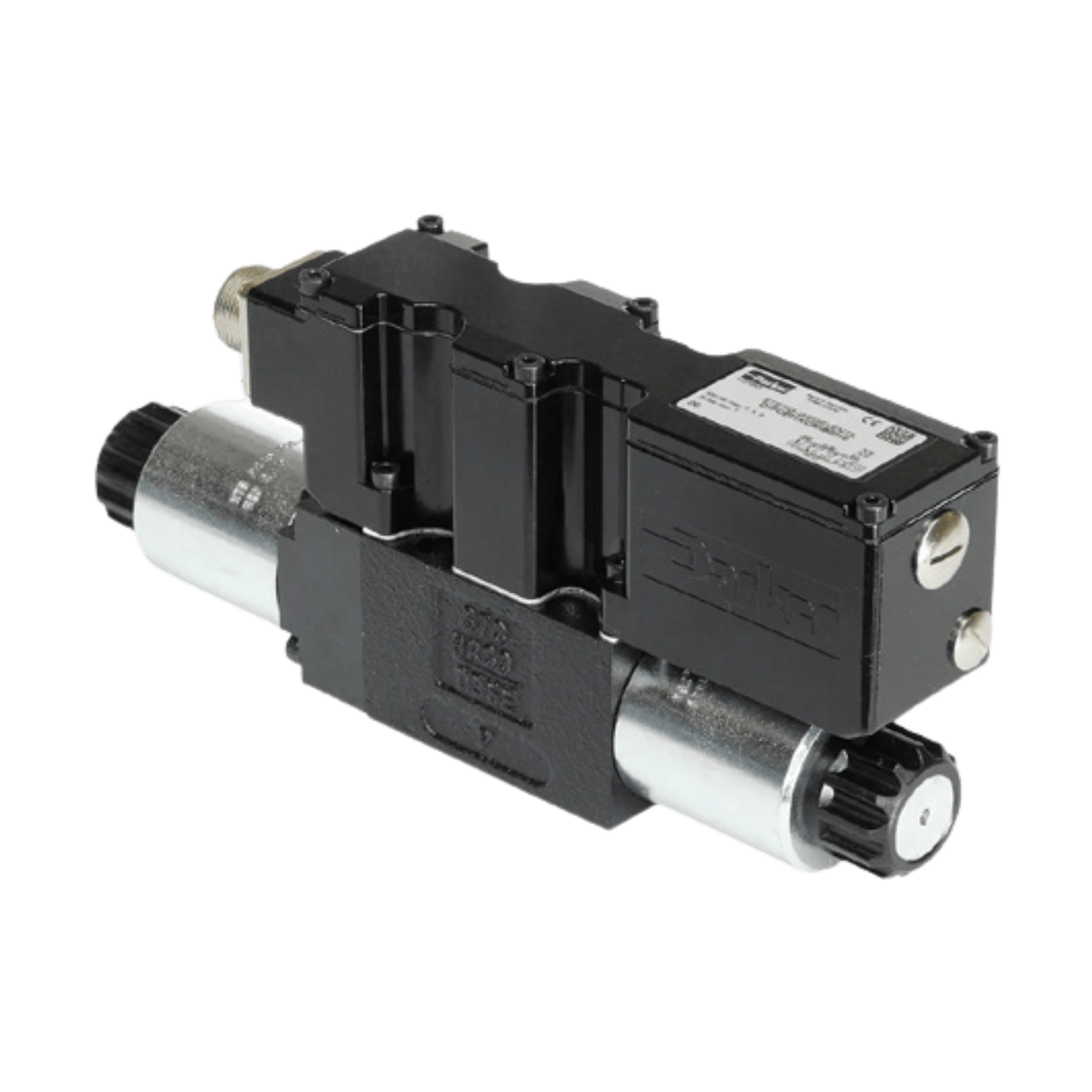

D1FC/D3FC

  • Optimized Process Speeds
  • High Dynamics & Flow
  • Fully Integrated Position Feedback System
  • Very Good Repeatability
  • Compact Dimensions
  • Progressive Flow Characteristics for Sensitive Adjustement
  • Subplate Mounting
  • EtherCAT® interface

Temperature: -25C to 60C

Function: 3-way

Actuation: Proportional Solenoid

Spool Design: Spool/ Body

Max. Operating Pressure: 350 bar

Pressure Differential: 5 bar

Seal: NBR, FPM

Body Material: Cast Iron

Learn More

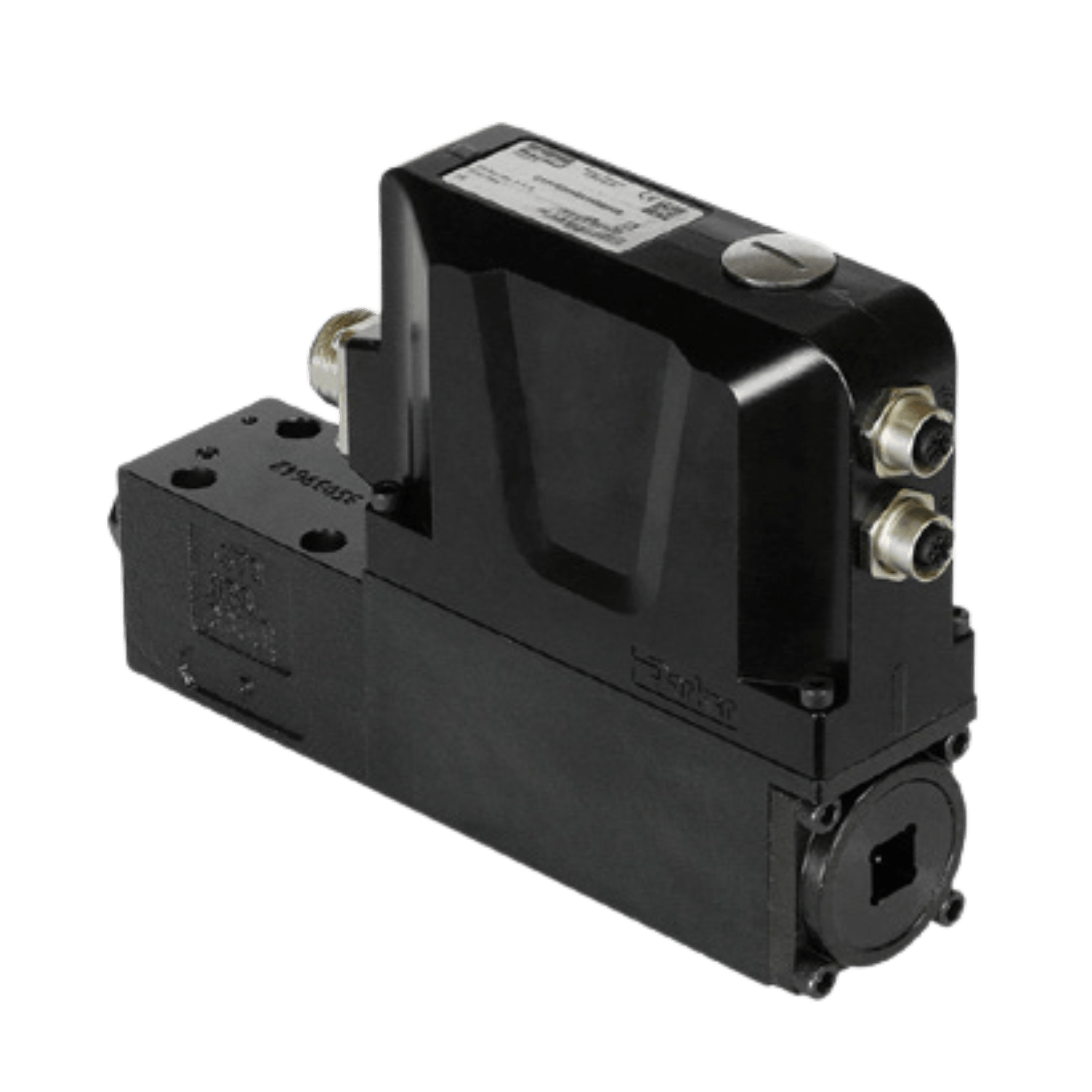

D1FP/D3FP

  • Real Sevovalve Dynamics (-3 dB/ 350 Hz at ±5% input sig)
  • Very Good Repeatability
  • Robust Valves (Minimizes Failtures)
  • Defined Spool Positioning at Power-down
  • EtherCAT® interface

Temperature: -20C to 50C

Port: NG06/ CETOP 03 (D1FP) NG10/ CETOP 05 (D3FP)

Actuation: VCD-actuator

Max. Operating Pressure: 350 bar

Pressure Differential: 35 bar

Temperature: -20C to 50C

Seal: NBR, FPM, for HFC Fluid

Body Material: Cast Iron

Learn More
